The Crystal LED Screen by ITFLED revolutionizes transparent display technology with its >50% light transmission and front-emitting LED design, delivering unmatched clarity while preserving ambient light flow. As part of our premium Crystal Series, it combines cutting-edge engineering with artistic versatility for high-end commercial applications.
No Light Obstruction | >50% Transparency
Front-emitting LED transparent screen with over 50% light transmission for high transparency and clarity.
Smart Control | App + Wireless Sync
Carbon Fiber Ice Screen™ supports multi-device wireless synchronization
Wirelessly share videos/images from smartphones for instant social media interaction1
Wide Viewing Angle | 160°
High reliability and contrast ratio with copper wire and copper bracket construction2
Modular Design | DIY Customization
Steel-free structure allows flexible sizing (as light as 10kg/m²)
Rapid assembly with 16,384 pixels/m² density
Low-Brightness High-Gamut | 200-5000cd/m²
Exceptional color accuracy (high grayscale & saturation) even in low-light environments
| Model | CS3.9X7.8Pro-T | CS3.9X7.8H-L | CS3.9X7.8H-M | CS3.9X7.8H-T |
Pixel pitch | 3.96/7.81mm | 3.96/7.81mm | 3.96/7.81mm | 3.96/7.81mm |
Weight | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel |
Pixel Density | 32256Pixel/m² | 32768Pixel/m² | 32768Pixel/m² | 32768Pixel/m² |
Module pixel | 2016Pixel | 2048Pixel | 2048Pixel | 2048Pixel |
Maximum Brightness | 5000(cd/m²) | 500(cd/m²) | 1800(cd/m²) | 4500(cd/m) |
Gray scale | 14bit | 13bit | 13bit | 13bit |
Refresh rate | 3840(Hz) | 1920(Hz) | 1920(Hz) | 2880(Hz) |
LED Type | SMD1921 | SMD2020 | SMD1921 | SMD1921 |
Scanning method | 7 | 16 | 16 | 8 |
Heat | 75W | 60W | 60W | 80W |
Viewing angle | 140° | 140° | 140° | 140° |
Refresh frequency | 3840 | 1920 | 1920 | 2880 |
Frame Frequency | 60 | 60 | 60 | 60 |
Operation temperature | -20°%45° | -20°/45° | -20/45° | -20°/45° |
Average Power | 220W/m² | 200W/m² | 200W/m² | 240W/m² |
Maximum power consumption | 720W/m² | 400W/m² | 400W/m² | 800W/m² |
Power Supply Specifications | F&R maintenance | F&R maintenance | F&R maintenance | F&R maintenance |
Protection grade | IP20 | IP20 | IP20 | IP20 |
Scalable | Croppable | not | not | not |

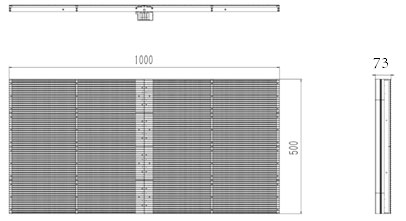

1000*500

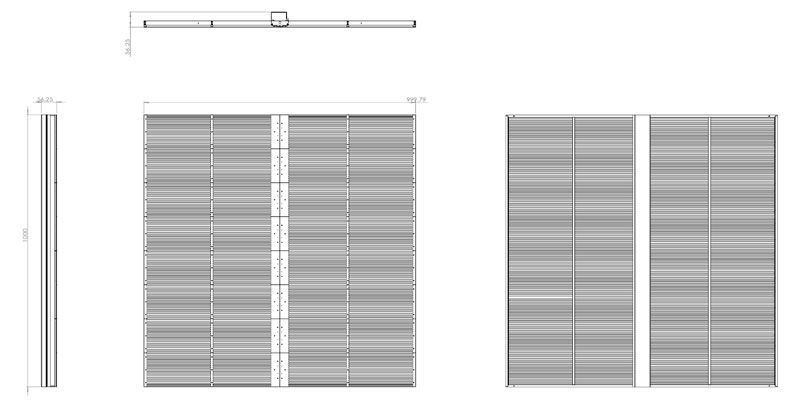

1000*1000

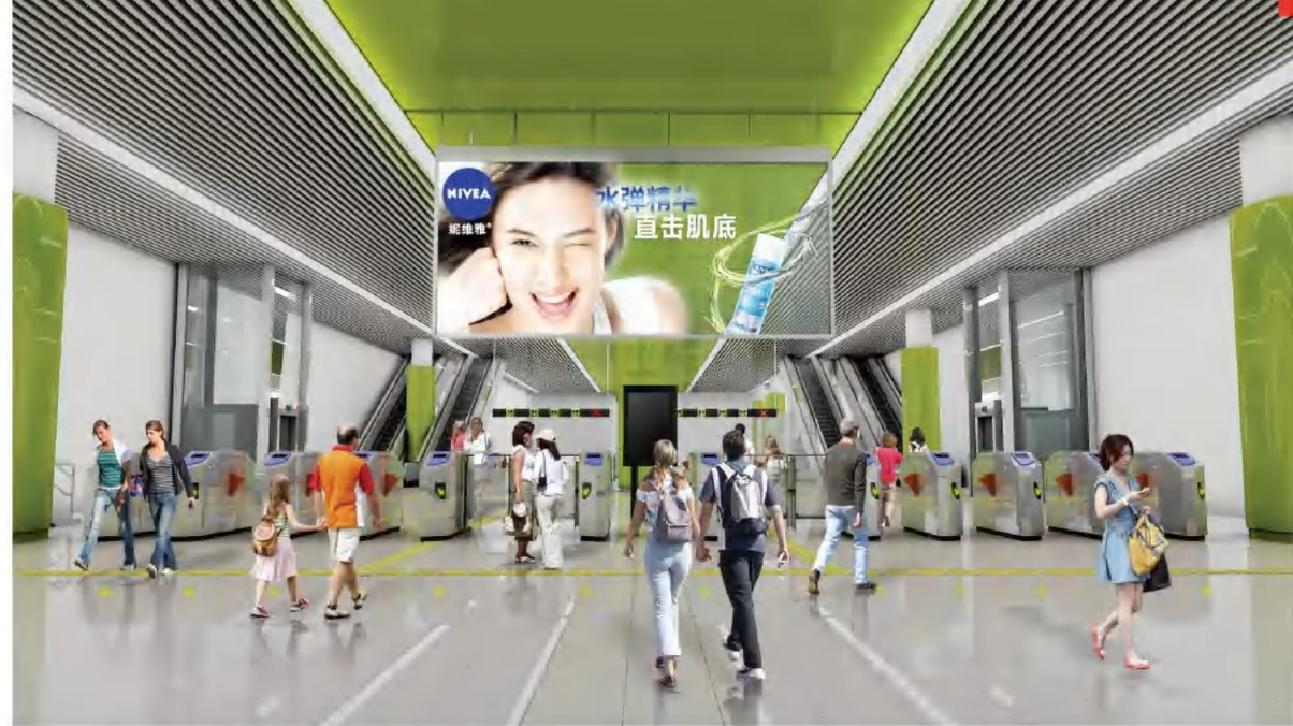

Bars, Airports, High-Speed Rail Stations & Large Indoor Spaces
Display Windows
Atriums
