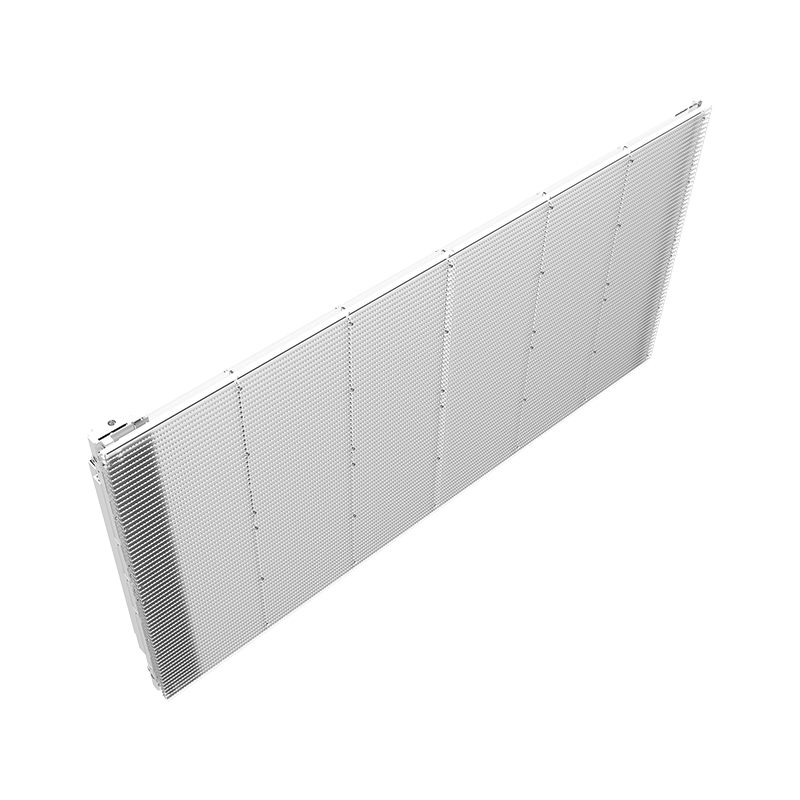

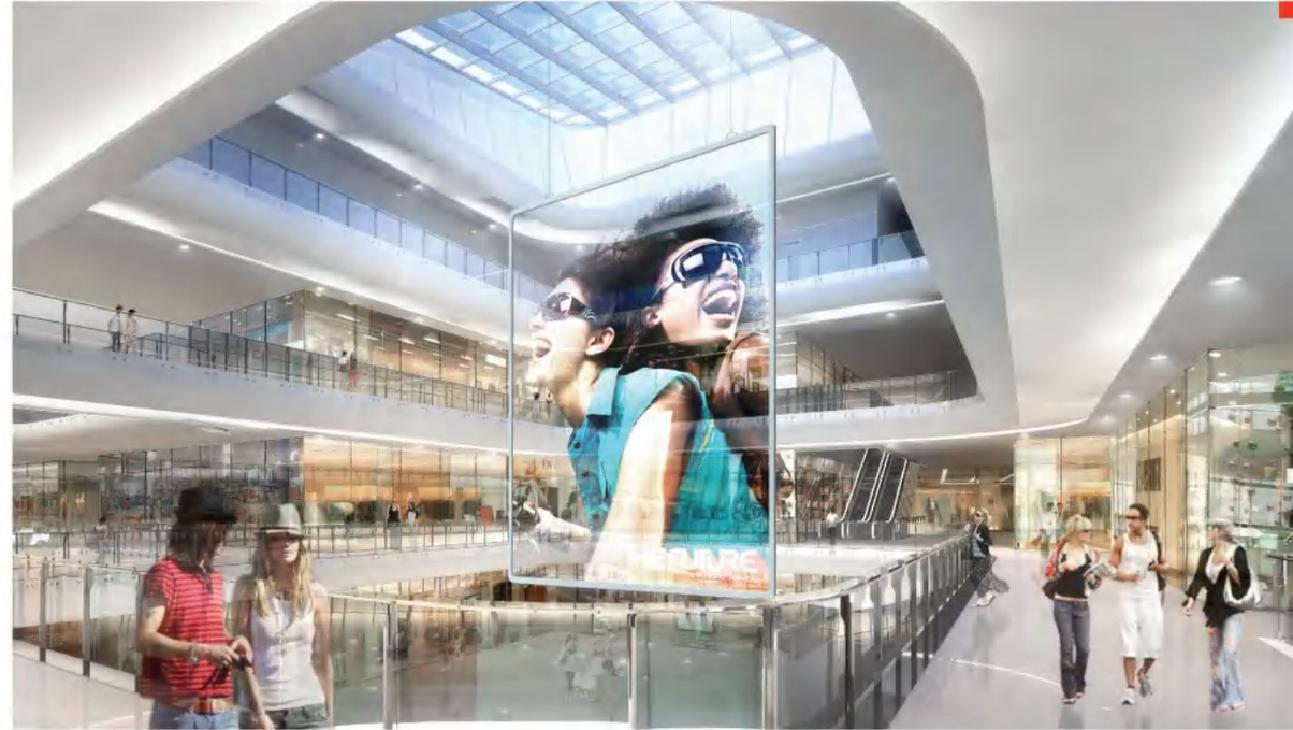

Jade Series Transparent Glass Window LED Display, see through led screen, without any change of architectural appearance and transparency of the glass wall, creating the open view in large space indoors, window displays for sale and make advertising emerge into architecture and life. New configuration, the shape innovation of static glass, new screen displaying, new advertising type.

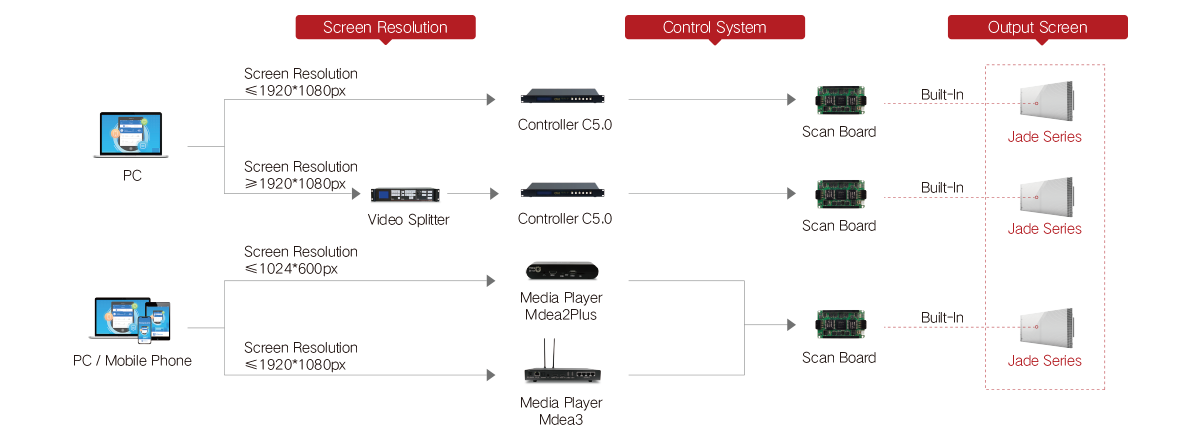

Smart control by mobile APP, wireless data transmission, screen+data cloud+APP, Wifi connection. High refresh rate in the industry, minimum pixel pitch(able to mass production) 3mm, 3840HZ refresh rate. High contrast ratio 1500:1, stunning color, dynamic image and eye-catching. Super transparent, more than 85% transparency, the highest transparency in led screen industry. Simple to use, no complicated installation, no steel structure, fast positioning and installation, convenient and quick maintenance.
Ultra Transparency
With over 88% light transmittance, our LED transparent screen achieves the industry's highest transparency rate
Super High Brightness
7000cd/m² brilliant luminosity for outstanding visibility
Space-Saving | Easy Installation
Modular design: Simply snap modules onto pre-assembled power beams and secure with screws
No external power/networking cables needed - clean and streamlined setup
| Model | Jade3.9X7.8Pro | Jade7.8X7.8Pro | Jade10.4X10.4Pro |
Pixel pitch | 3.9/7.8mm | 7.8/7.8mm | 10.4/10.4mm |
Weight | 14kg/panel | 14kg/panel | 14kg/panel |
Pixel Density | 32768Pixel/m² | 16384Pixel/m² | 9216Pixel/m² |
Resolution | 256*64/128*64(W*H) | 128*64/64*64(W*H) | 96*48/48*48(W*H) |
Maximum Brightness | 5500(cd/m²) | 7000(cd/m) | 7000(cd/m²) |
Gray scale | 14bit | 14bit | 14bit |
Refresh rate | 3840(Hz) | 3840(Hz) | 3840(Hz) |
LED Type | 3510 | 3510 | 3510 |
Scanning method | 1/6 | 1/3 | 1/2 |
Transparency | 70% | 70% | 85% |
Viewing angle | H170/V170° | H170/V170° | H170%V170° |
Screen size | 1000*500/500*500mm | 1000*500/500*500mm | 1000*500/500*500mm |
Operation temperature | -20/45° | -20/45° | -20°/45° |
Average Power | 240W/m² | 240W/m² | 240W/m² |
Maximum power consumption | 720W/m² | 720W/m² | 720W/m² |
Protection grade | IP4X | IP4X | IP4X |
Maintenance mode | Post-maintenance | Post-maintenance | Post-maintenance |
Modular: DIY design, free combination of arbitrary size glass screen. Simple: no complex installation, no steel structure, quick positioning, quick installation, convenient and quick maintenance. Brilliant colors: high contrast 1500: 1, dynamic image, attracting eyeball. New form: change the form of static glass, new screen display, new advertising methods.

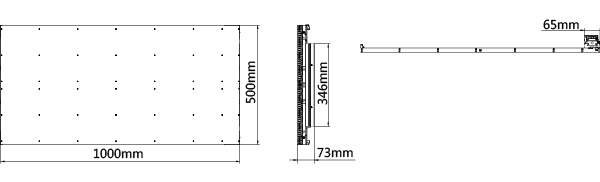

1000 × 500 × 85 / 8.5 kg

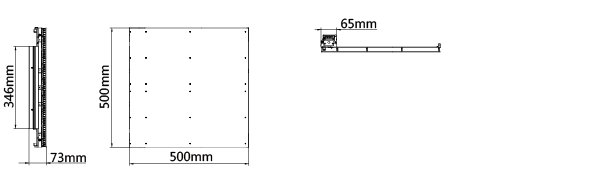

500 × 500 × 85 / 4.25 kg


Glass Showcases
Architectural Glass Curtain Walls

Get Your Custom LED Display Solution with ITFLED
