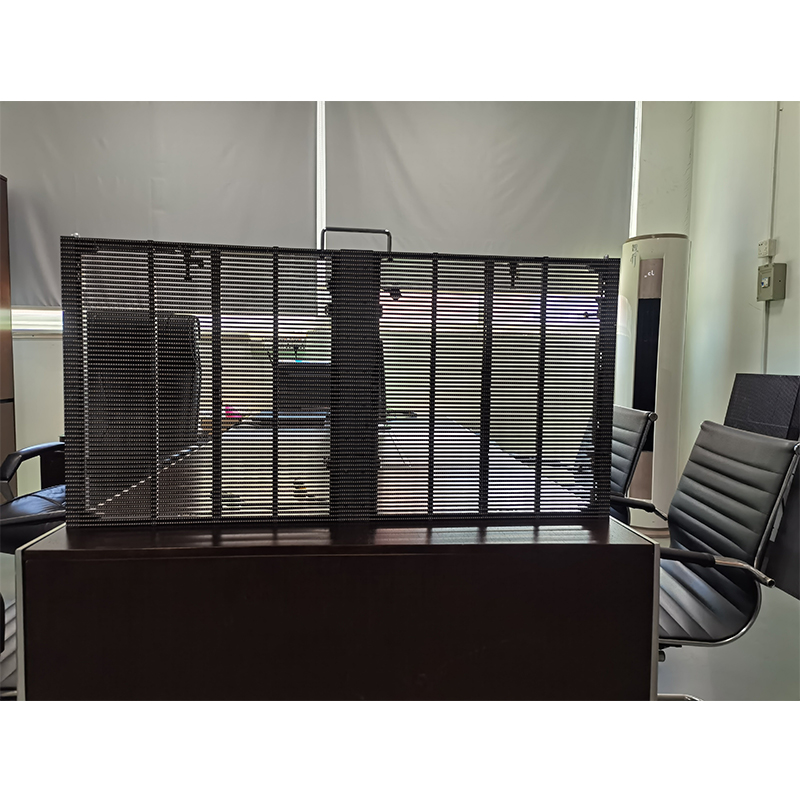

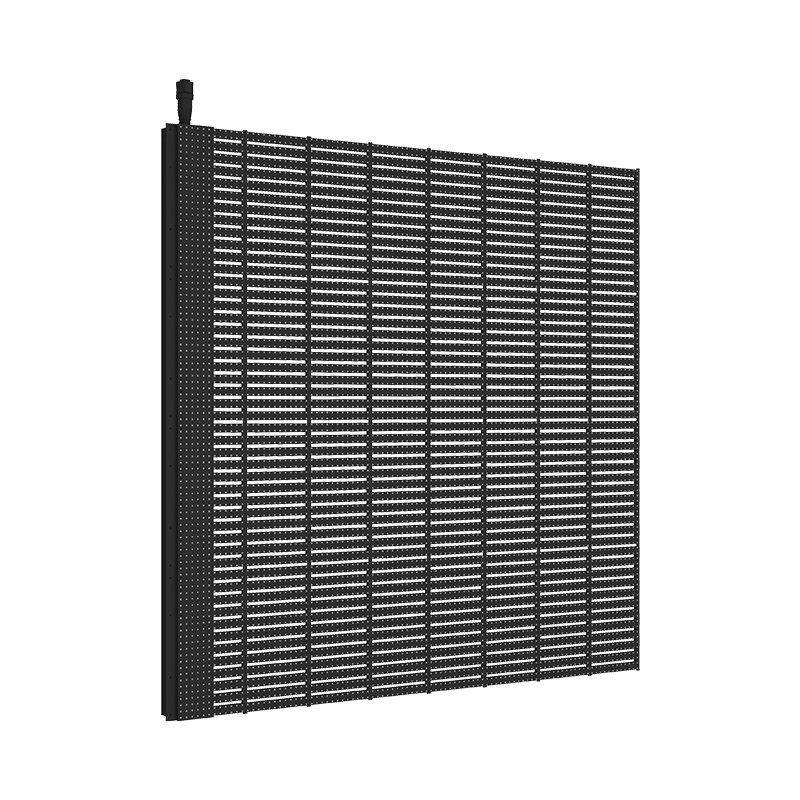

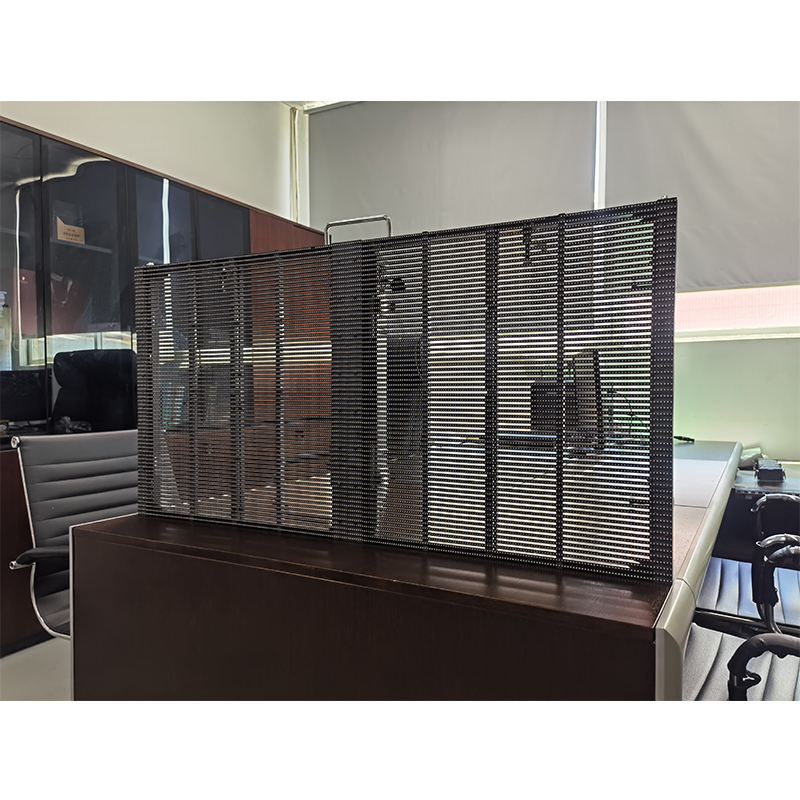

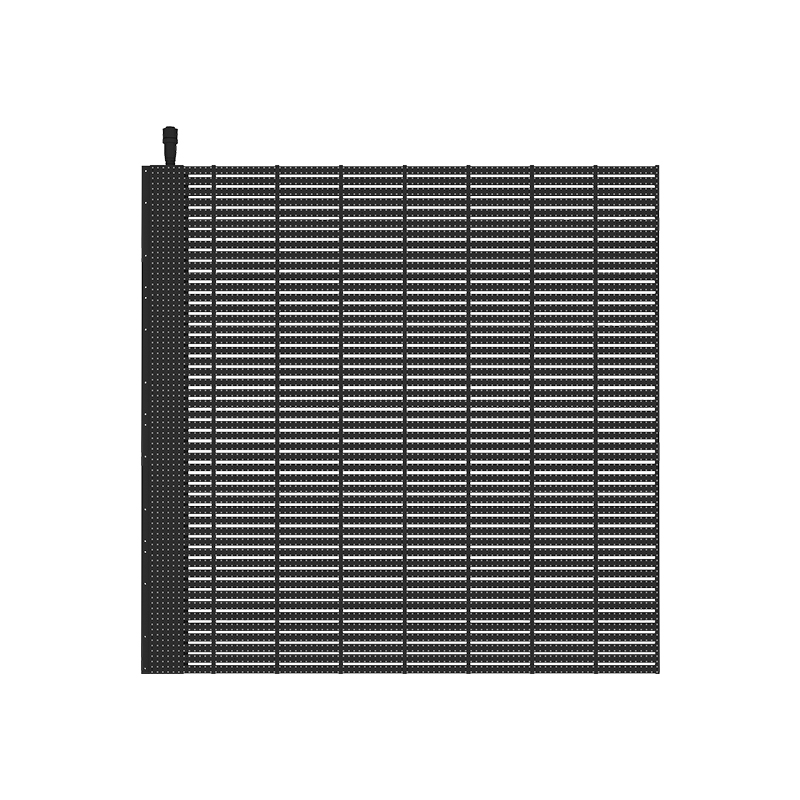

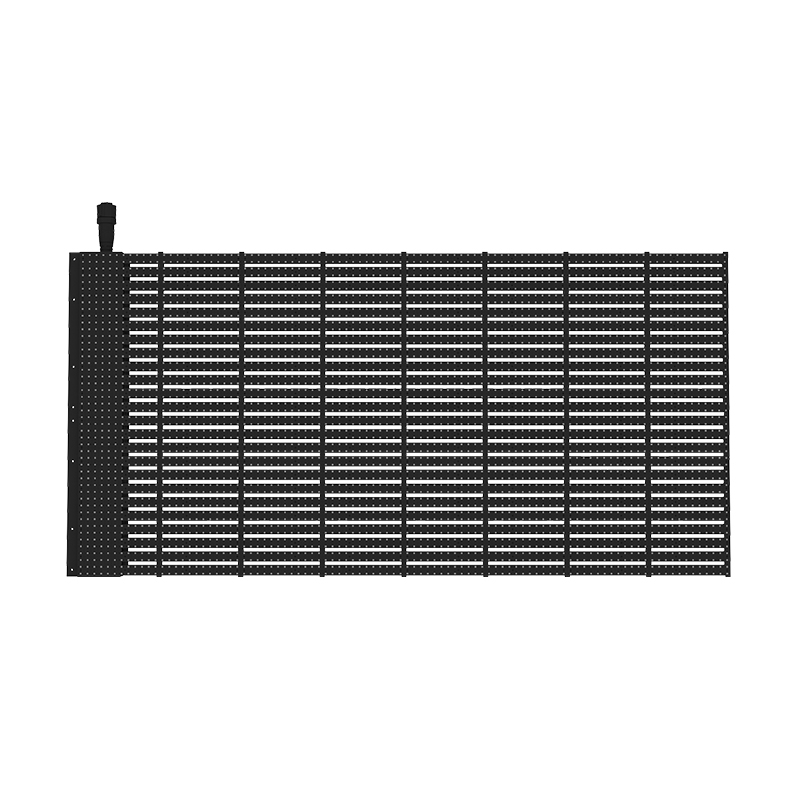

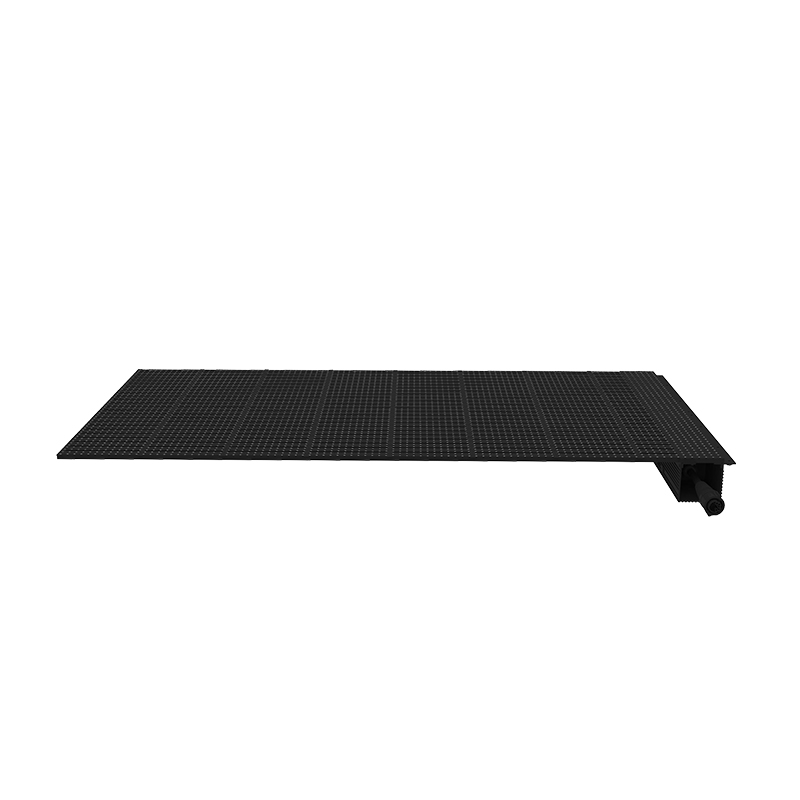

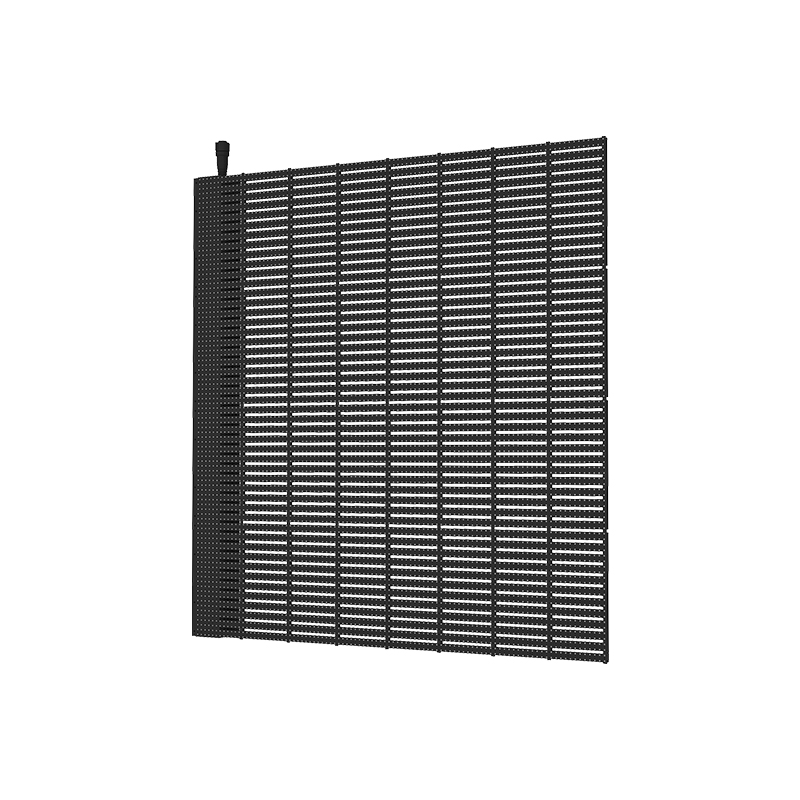

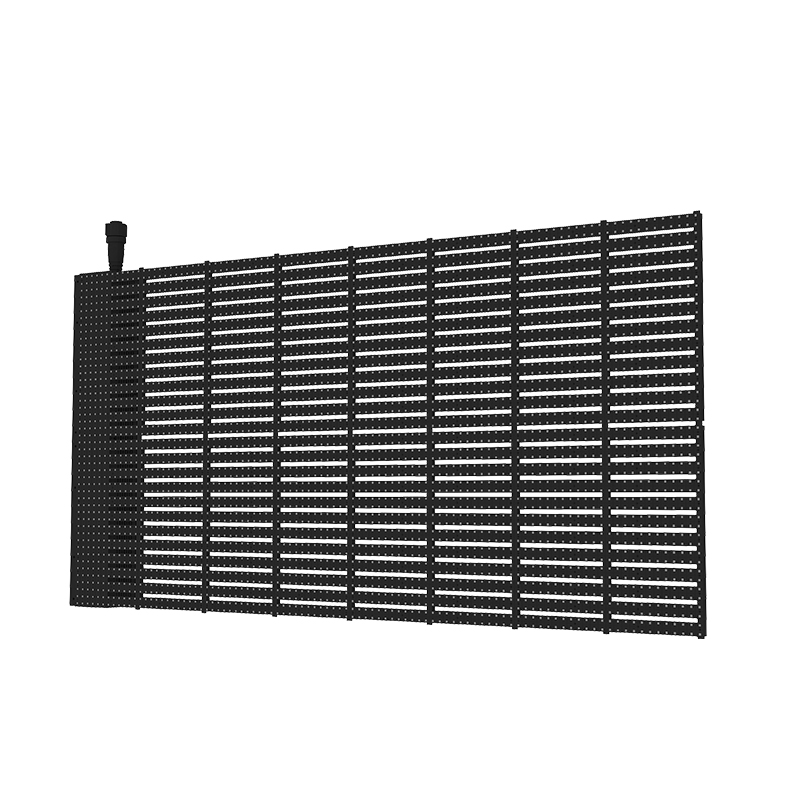

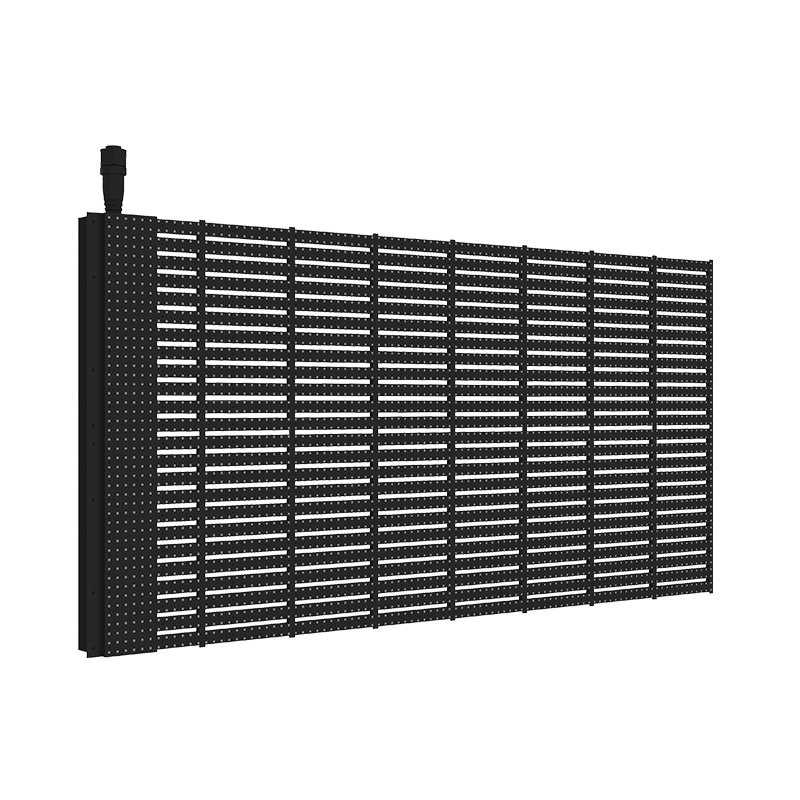

LED outdoor grille screen is a new type of LED display product, with outdoor waterproof IP67 grade, full color display, more convenient and building curtain wall. The box can reach 1000*1000mm, providing 500*1000mm size box, modular design, ultra-thin, front and back maintenance, easy installation and maintenance.
High Brightness & High Refresh Rate | 7000nits/7200Hz
Crystal-clear visibility day & night: 7000nits brightness ensures vivid display even under direct sunlight, while 7200Hz refresh rate eliminates water ripple effects for flawless photography
Long-distance attraction: Captures attention from afar during nighttime with high-intensity luminosity
Ventilated & Light-Transmissive | >25% Transparency
Superior airflow design: Over 25% open area enhances wind resistance and structural stability
Natural light preservation: Maintains building aesthetics without blocking sunlight penetration
Ultra-Thin & Lightweight | IP67 Protection
Slim profile:<10mm module thickness with <13kg/m² weight – ideal for high-rise installations
Military-grade durability: IP67 rating withstands harsh weather conditions while ensuring easy maintenance
Simplified Installation | Modular Design

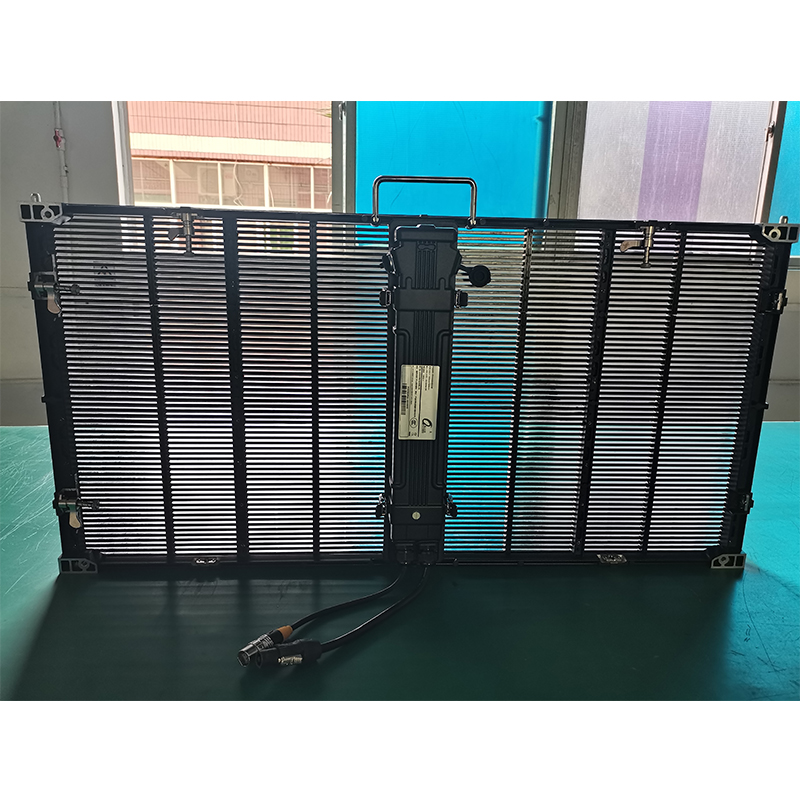

Tool-free assembly: Snap modules onto pre-mounted power beams and secure with screws
Clean cable management: No exposed power/network wires for seamless integration
| Product specification | outdoor CT10.4 | outdoor CT10.4 PRO |
pixel pitch（mm） | 10.4*10.4 | 10.4*10.4 |
pixel density（dots/m2） | 9216 | 9216 |
resolution ratio（W*H/pcs） | 24*96 | 24*96 |
maximum brightness（cd/m2） | 5500 | 7000 |
Color Mode（bit） | 15 | 15 |
refresh rate(Hz） | 7200 | 7200 |
scanning mode | 1/2 | static state |
Viewing Angl（º） | H140/V120 | H160/V160 |
Screen size (W*H*D)(mm) | 1000*1000*77 | 1000*125*3 |
Module size（W*H）(mm) | 250*1000*13 | 1000*125 |
Weight（kg/panel） | 13 | 5 |
IP Grade | IP67 | IP65 |
Power supply | 500W PFC power，91%efficiency | 400W PFC power，91%efficiency |
working voltage(V) | AC100-240V/50/60HZ | AC100-240V/50/60HZ |
maximum power consumption（W/m2） | 650 | 650 |
Average Power consumption(W/m2) | 200 | 200 |
Working Temperature（℃） | -20/50 | -20/50 |
Screen body main material | aluminum profile+PC | aluminum profile+PC |

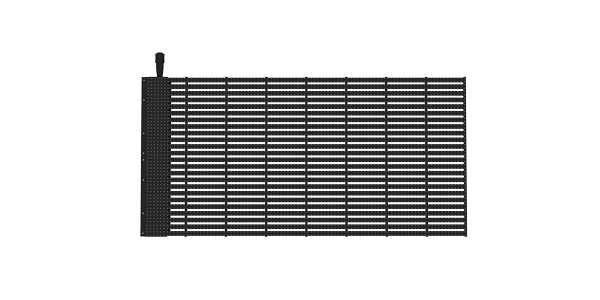

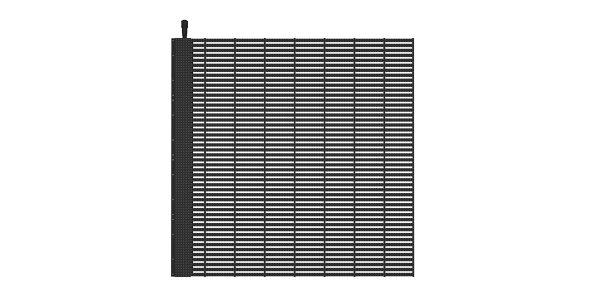

| 1000*500 | 500*500 |
 |  |
High-Rise Buildings & Shopping Malls
Airports
Hotels

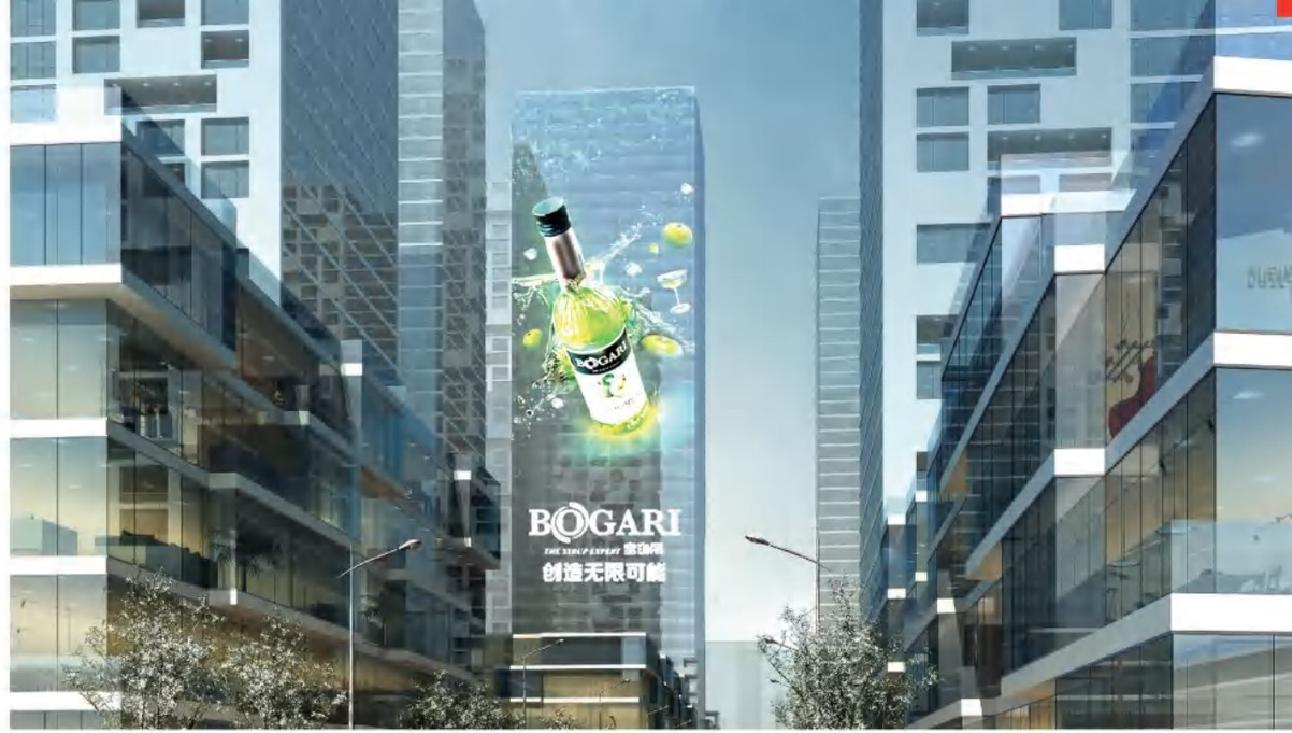

Outdoor Naked-eye 3D Billboards
